Pentaho Spoon DB정보 변경 자동화툴

Pentaho Spoon DB정보 변경 자동화툴

1.Spoon

Pentaho spoon는 데이터를 수집,가공,분석 하는 오픈소스ETL 툴이다.



2.개발이유

울 회사는 순차적으로 쿼리를 실행해 데이터를 분마다 삽입하는 용도로 사용하고있다.

데이터를 다루다보니 DB정보를 기본적으로 설정해줘야한다



매번 현장에 ETL 적용시

개발 서버랑 현장서버랑 DB정보가 달라서

현장DB서버주소로 변경해주는 작업을 해야했다

우리회사는 spoon에서 kjb파일과 ktr파일 두 종류만 사용한다

kjb파일은 보통 이런식으로 되어있고

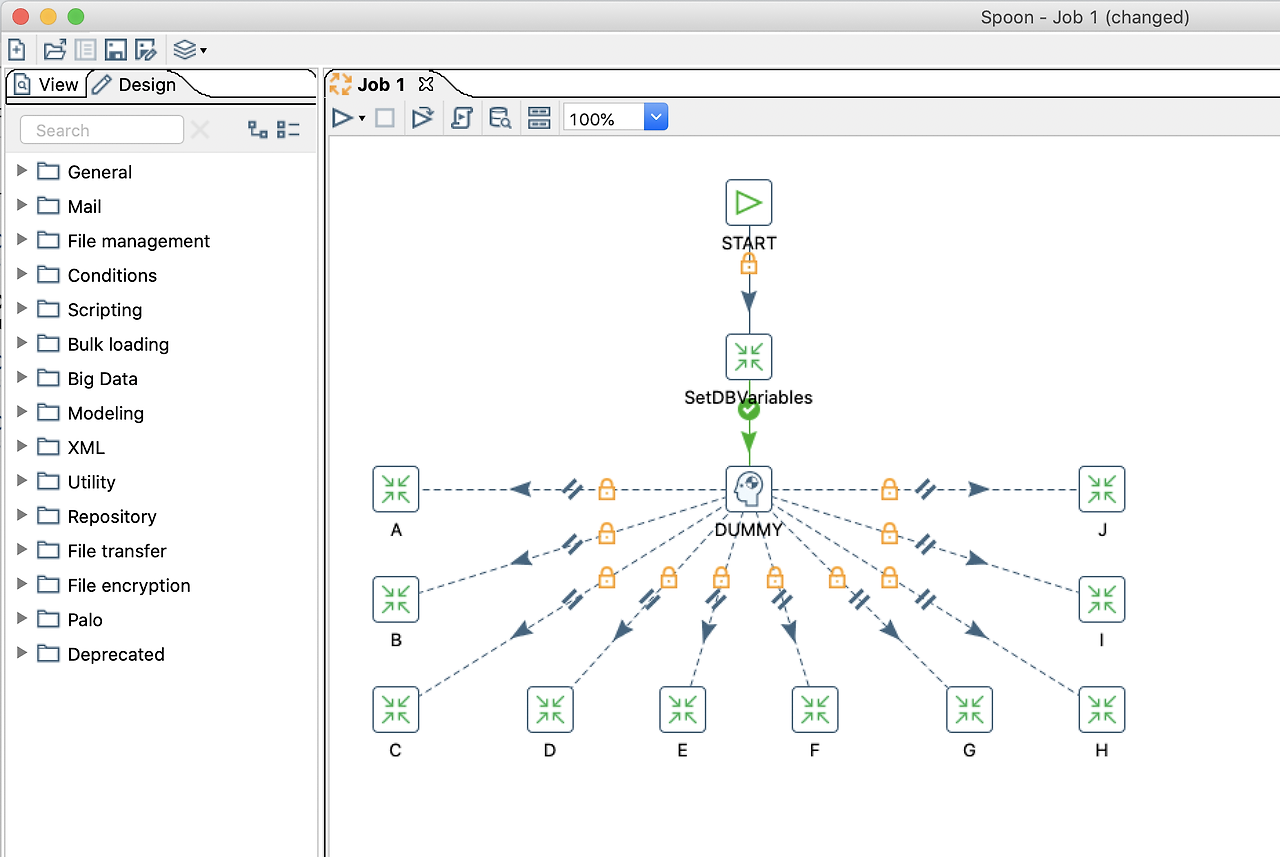

kjb 파일을 열어보면 수많은 엔트리(transformation)들이 연결되어있고

각 엔트리 파일들이 곧 ktr 파일이다



근데 현장에 적용할때 개발서버랑 경로를 동일하게 설정했으면 모를까



현장마다 개발서버와 경로가 다른곳이 있었다



그래서 적용할때마다

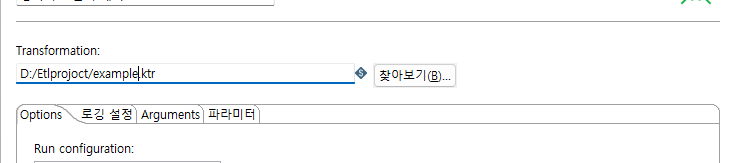

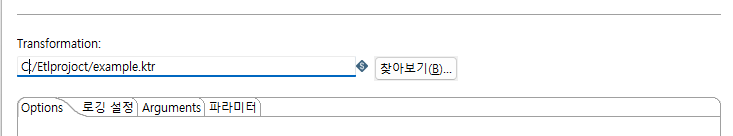

이런식으로 현장경로에 맞게 변경해줘야했다

그리고

ktr 파일을 열어서 그안에 DB 정보도 다시 아래와 같이 수정해줘야했다

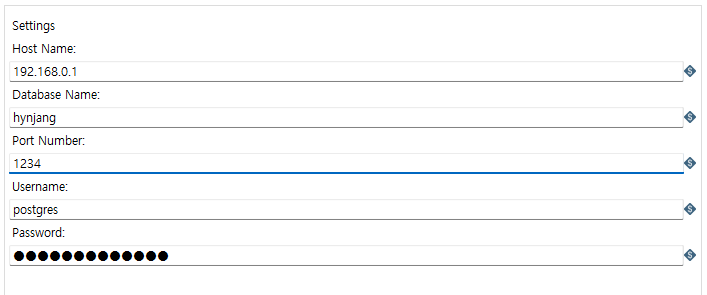

개발서버정보

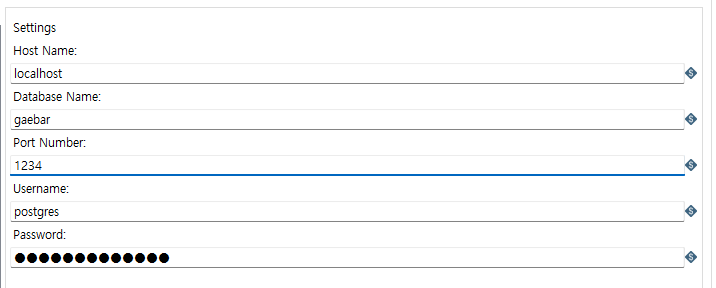

현장서버정보로 수정



3. 사용법

0) download

https://github.com/dpfmaptm1534/PentahoSpoonInfoUpdate

GitHub - dpfmaptm1534/PentahoSpoonInfoUpdate: Pentaho Spoon Db정보, 경로 자동 업데이트 툴

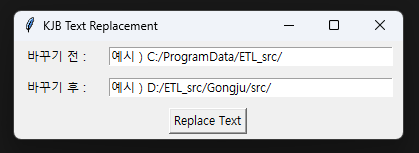

1) kjb.py

kjb파일이 있는곳에 py파일을 실행시키면 된다

import os
import tkinter as tk

example1 = "예시) C:/ProgramData/ETL_src/"
example2 = "예시) D:/ETL_src/src/"

def replace_text_in_kjb():
    old_text = old_text_entry.get()
    new_text = new_text_entry.get()

    # 현재 폴더 내의 모든 kjb 파일 찾기
    current_directory = os.getcwd()
    kjb_files = [f for f in os.listdir(current_directory) if f.endswith('.kjb')]
    print(kjb_files)
    for kjb_file in kjb_files:
        kjb_file_path = os.path.join(current_directory, kjb_file)
        with open(kjb_file_path, 'r') as file:
            kjb_content = file.read()

        # 특정 텍스트 교체
        new_content = kjb_content.replace(old_text, new_text)

        # 파일에 쓰기
        with open(kjb_file_path, 'w') as file:
            file.write(new_content)

def on_entry_click(event, entry):
    if entry.get() == example1 or entry.get() == example2:
        entry.delete(0, "end")
        entry.insert(0, "")

def on_focusout(event, entry, placeholder):
    if entry.get() == "":
        entry.insert(0, placeholder)

# Tkinter UI 생성
root = tk.Tk()
root.title("KJB Text Replacement")

old_text_label = tk.Label(root, text="바꾸기 전 :")
old_text_label.grid(row=0, column=0, padx=10, pady=5)
old_text_entry = tk.Entry(root, width=40)
old_text_entry.insert(0, example1)
old_text_entry.bind("<FocusIn>", lambda event: on_entry_click(event, old_text_entry))
old_text_entry.bind("<FocusOut>", lambda event: on_focusout(event, old_text_entry, example1))
old_text_entry.grid(row=0, column=1, padx=10, pady=5)

new_text_label = tk.Label(root, text="바꾸기 후 :")
new_text_label.grid(row=1, column=0, padx=10, pady=5)
new_text_entry = tk.Entry(root, width=40)
new_text_entry.insert(0, example2)
new_text_entry.bind("<FocusIn>", lambda event: on_entry_click(event, new_text_entry))
new_text_entry.bind("<FocusOut>", lambda event: on_focusout(event, new_text_entry, example2))
new_text_entry.grid(row=1, column=1, padx=10, pady=5)

replace_button = tk.Button(root, text="Replace Text", command=replace_text_in_kjb)
replace_button.grid(row=2, columnspan=2, padx=10, pady=5)

root.mainloop()





2) ktr.py

classes폴더 및 파일, Encr.bat파일이 반드시 필요하다

사용법 역시 ktr파일이 있는곳에 ktr.py, Encr.bat, classes폴더를 놓고 ktr.py파일을 실행한다

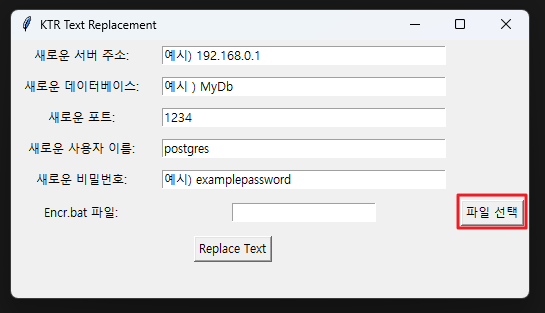

칸을 다채우고 반드시

파일선택을 눌러 Encr.bat 파일을 선택한다

import os
import subprocess
import re
import tkinter as tk
from tkinter import filedialog
from tkinter import messagebox

example1 = "예시) 192.168.0.1"
example2 = "예시 ) MyDb"
example3 = "1234"
example4 = "postgres"
example5 = "예시) examplepassword"

def replace_text_in_ktr(new_server, new_database, new_port, new_username, new_password,encr_bat_path):

    new_password = encrypt_password(new_password, encr_bat_path)
    # 정규 표현식 패턴 설정
    server_pattern = r"<server>(.*?)<\/server>"
    database_pattern = r"<database>(.*?)<\/database>"
    port_pattern = r"<port>(.*?)<\/port>"
    username_pattern = r"<username>(.*?)<\/username>"
    password_pattern = r"<password>(.*?)<\/password>"

    server_replacement = f"<server>{new_server}</server>"
    database_replacement = f"<database>{new_database}</database>"
    port_replacement = f"<port>{new_port}</port>"
    username_replacement = f"<username>{new_username}</username>"
    password_replacement = f"<password>{new_password}</password>"

    # 현재 작업 디렉토리
    current_directory = os.path.dirname(os.path.realpath(__file__))

    # 현재 디렉토리 내의 모든 .ktr 파일 찾기
    ktr_files = [f for f in os.listdir(current_directory) if f.endswith('.ktr')]

    for ktr_file in ktr_files:
        ktr_file_path = os.path.join(current_directory, ktr_file)

        # 파일 열기
        try:
            with open(ktr_file_path, 'r', encoding='utf-8') as file:
                ktr_content = file.read()
        except UnicodeDecodeError:
            print(f"Error: Unable to decode file '{ktr_file_path}' with 'utf-8' encoding. Trying 'cp949' encoding.")
            try:
                with open(ktr_file_path, 'r', encoding='cp949') as file:
                    ktr_content = file.read()
            except UnicodeDecodeError:
                messagebox.showerror("오류", f"'{ktr_file_path}' 파일을 읽을 수 없습니다.")
                return

        # 특정 텍스트 교체
        ktr_content = re.sub(server_pattern, server_replacement, ktr_content)
        ktr_content = re.sub(database_pattern, database_replacement, ktr_content)
        ktr_content = re.sub(port_pattern, port_replacement, ktr_content)
        ktr_content = re.sub(username_pattern, username_replacement, ktr_content)
        ktr_content = re.sub(password_pattern, password_replacement, ktr_content)

        # 파일에 쓰기
        with open(ktr_file_path, 'w', encoding='utf-8') as file:
            file.write(ktr_content)

    # 작업 완료 알림
    messagebox.showinfo("완료", "텍스트 교체가 완료되었습니다.")

def on_entry_click(event, entry):
    if entry.get() in [example1,example2,example5]:
        entry.delete(0, "end")
        entry.insert(0, "")


def on_focusout(event, entry, placeholder):
    if entry.get() == "":
        entry.insert(0, placeholder)

def encrypt_password(password, encr_bat_path):
    try:
        output = subprocess.check_output([encr_bat_path, '-kettle', password], stderr=subprocess.STDOUT, shell=True)
        encrypted_password = output.decode('cp949').strip()  # cp949 인코딩 사용
        return encrypted_password
    except subprocess.CalledProcessError as e:
        print("Error:", e.output.decode('cp949'))  # 오류 메시지 디코딩
        return None

def select_encr_bat_file():
    encr_bat_path = filedialog.askopenfilename(title="Select Encr.bat File", filetypes=(("Batch files", "*.bat"), ("All files", "*.*")))
    if encr_bat_path:
        encr_bat_entry.delete(0, tk.END)
        encr_bat_entry.insert(0, encr_bat_path)

def encrypt_password_button_click():
    password = encrypt_password(password, encr_bat_path)
    encr_bat_path = encr_bat_entry.get()
    if password and encr_bat_path:
        encrypted_password = encrypt_password(password, encr_bat_path)
        if encrypted_password:
            print("암호화된 비밀번호:", encrypted_password)  # 결과를 터미널에 출력
            result_label.config(text=f"암호화된 비밀번호: {encrypted_password}")
        else:
            result_label.config(text="암호화에 실패했습니다.")
    else:
        result_label.config(text="비밀번호 또는 Encr.bat 파일을 선택하세요.")



# Tkinter UI 생성
root = tk.Tk()
root.title("KTR Text Replacement")

new_server_label = tk.Label(root, text="새로운 서버 주소:")
new_server_label.grid(row=0, column=0, padx=10, pady=5)
new_server_entry = tk.Entry(root, width=40)
new_server_entry.insert(0, example1)
new_server_entry.bind("<FocusIn>", lambda event: on_entry_click(event, new_server_entry))
new_server_entry.bind("<FocusOut>", lambda event: on_focusout(event, new_server_entry, example1))
new_server_entry.grid(row=0, column=1, padx=10, pady=5)

new_database_label = tk.Label(root, text="새로운 데이터베이스:")
new_database_label.grid(row=1, column=0, padx=10, pady=5)
new_database_entry = tk.Entry(root, width=40)
new_database_entry.insert(0, example2)
new_database_entry.bind("<FocusIn>", lambda event: on_entry_click(event, new_database_entry))
new_database_entry.bind("<FocusOut>", lambda event: on_focusout(event, new_database_entry, example2))
new_database_entry.grid(row=1, column=1, padx=10, pady=5)

new_port_label = tk.Label(root, text="새로운 포트:")
new_port_label.grid(row=2, column=0, padx=10, pady=5)
new_port_entry = tk.Entry(root, width=40)
new_port_entry.insert(0, example3)
new_port_entry.bind("<FocusIn>", lambda event: on_entry_click(event, new_port_entry))
new_port_entry.bind("<FocusOut>", lambda event: on_focusout(event, new_port_entry, example3))
new_port_entry.grid(row=2, column=1, padx=10, pady=5)

new_username_label = tk.Label(root, text="새로운 사용자 이름:")
new_username_label.grid(row=3, column=0, padx=10, pady=5)
new_username_entry = tk.Entry(root, width=40)
new_username_entry.insert(0, example4)
new_username_entry.bind("<FocusIn>", lambda event: on_entry_click(event, new_username_entry))
new_username_entry.bind("<FocusOut>", lambda event: on_focusout(event, new_username_entry, example4))
new_username_entry.grid(row=3, column=1, padx=10, pady=5)

new_password_label = tk.Label(root, text="새로운 비밀번호:")
new_password_label.grid(row=4, column=0, padx=10, pady=5)

new_password_entry = tk.Entry(root, width=40)
new_password_entry.insert(0, example5)
new_password_entry.bind("<FocusIn>", lambda event: on_entry_click(event, new_password_entry))
new_password_entry.bind("<FocusOut>", lambda event: on_focusout(event, new_password_entry, example5))
new_password_entry.grid(row=4, column=1, padx=10, pady=5)

encr_bat_label = tk.Label(root, text="Encr.bat 파일:")
encr_bat_label.grid(row=6, column=0, padx=10, pady=5)
encr_bat_entry = tk.Entry(root)
encr_bat_entry.grid(row=6, column=1, padx=10, pady=5)
encr_bat_button = tk.Button(root, text="파일 선택", command=select_encr_bat_file)
encr_bat_button.grid(row=6, column=2, padx=5, pady=5)

replace_button = tk.Button(root, text="Replace Text", command=lambda: replace_text_in_ktr(
    new_server_entry.get(), new_database_entry.get(), new_port_entry.get(),
    new_username_entry.get(), new_password_entry.get(),encr_bat_entry.get()))
replace_button.grid(row=8, columnspan=2, padx=10, pady=5)

result_label = tk.Label(root, text="")
result_label.grid(row=9, columnspan=2, padx=10, pady=5)

root.mainloop()
